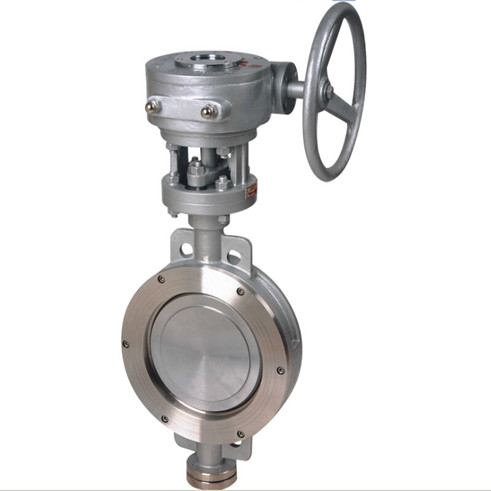

wafer eccentric butterfly valve

Item No.: D373H

Product Usage

The D373H and D373Y wafer-type hard-sealed butterfly valves are made of precision J-shaped elastic sealing ring and three-eccentric multi-layer metal hard sealing structure. They are widely used in metallurgy, electric power, petrochemical, and water supply and drainage with medium temperature ≤ 425 °C. On industrial pipelines such as municipal construction, it is used to regulate flow and load fluid.

Description

1.Technical parameters
Body
Nominal size: DN40 -DN1000mm
Body material: WCB,Ductile iron, ss304, 316
Connection type: Wafer type, LT lug wafer type
Pressure class: PN1.0-1.6MPa
Structure type: Midline type

2.Valve components
Seat sealing: EPDM: -30~120°C
PTFE: -30~180°C
VITON: -30~150°C
NBR: -30~80°C
Disc material: Ductile iron nickel plating, nylon coating, aluminum bronze, 304, 316, 316L, 1.4529, 2507
Stem material: 304,SS410
Applicable medium: Water, liquids, gas, oil, powder, steam, acid-base medium, etc.

3.Actuators

Type	Control type	Function
Pneumatic actuator	Double acting	Failure to maintain
	Single acting normally closed	Failure to close
	Single acting normally open	Failure to open
	Optional accessory	Solenoid valve, limit switch box, air filter relief pressure valve, positioner, manual device.
Electric actuator	ON-OFF type	Feedback: the active signal, passive contact signal, resistance, 4-20mA
	Regulation type	Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
	Filed operation	The field, remote control switch regulation and MODBUS, PROFIBUS field bus
