Features
1. the valve adopt three eccentric struture.No war between the valve seat and valve plate, with more and more tightly sealing funtion.
2. The sealing ring of this butterfly valve are metal elastic sealing and metal seals which make the valve with bilateral direction sealing. All with excellent sealing properties, resistant to corrosion, long service life both in low pressure and high temperature.
3. The sealing surface of the disc is welding of cobalt-based alloy, with the advantage of wear resistance, long service life.
4. There is a two-way sealing function of the valve.No restriction from the media flows and spatial location, which can be installed in any direction.
5. The driving device can be installed multi-bit(rotation 90°or 180°), easy to use.

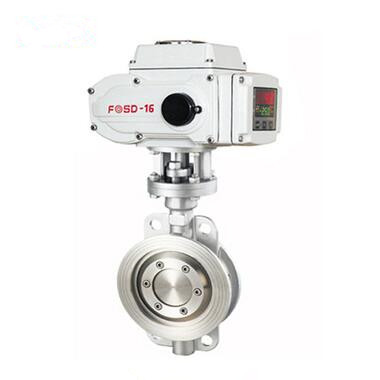

Hard sealing wafer electric butterfly valve
1. Stainless steel hard seal
2. Nominal pressure:PN10 / PN16
3. ON-OFF Type / Modulating Type:4-20mA
Technical Parameters:
| Electric actuators |
Type: 1.on/off type 2. 4-20MA |
| Voltage |
AC220V AC110V AC380V DC12V DC24V DC110V |
| Nominal diameter |
DN50-DN600 |
| Nominal pressure |
1.0-1.6MPa |
| Applicable temperature |
Stainless steen: -30~425°C |
| Connection |
Wafer |
| Body material |
ss304, ss316 |
| Disc material |
304, 316, 316L, nylon, cast steel, Ductile iron |
| Seat lining |
Stainless steel |
| Applicable medium |
Suitable medium: water, sea, water, food, natural gas, alcohols, salts, acids, alkalis, oil, steam, air, etc. |
Design and Manufacturing Standards
Design and Manufacture: GB
Connection Standard: JB
Structure Length: GB
