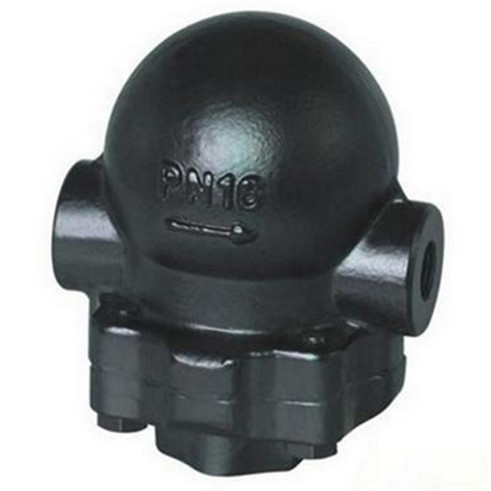

ball floating steam trap

ball floating steam trap

Item No.: FT14H

- For Steam

- Casting or Forged

- With Drain Plug

- Ball Float Steam Trap

- Inverted Bucket Steam Trap

- Thermostatic Steam Trap

- Thermodynamic Steam Trap

- Bimetallic Steam Trap

- Screwed Ends to ASME B1.20.1

- Socket Weld Ends to ASME B16.11

- Butt Weld Ends to ASME B16.25

- Flanged Ends to ASME B16.5

Description

Product Name	Steam Trap
Valve Type	Steam Trap
Size Range	DN15~DN150, 1/2"~6"
Pressure Range	PN10~PN40, CLASS150~300
Connection End	NPT, SW, BW, RF
Standard	API 598, MSS SP-25
Packing Method	Standard Export worthy duly wooden boxs

Main Part & Materials:

Part Names	Part Materials
Body	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304	CF3M/F316L
Bonnet	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304	CF3M/F316L
Trim	SS304			SS304	SS316	SS304L	SS316L
Bolts/Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M
Suitable Medium	Steam
Suitable Temperature	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C
